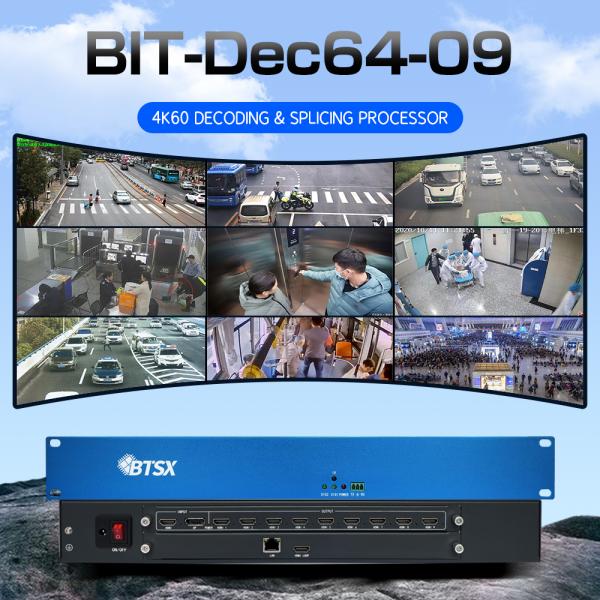

4K60 Gigabit Ethernet Decoding and Splicing Processor IP Stream Input Control Room NVR Decoder E-Map Security Monitoring Decoder

Name: 4K60 Gigabit Ethernet Decoding and Splicing Processor IP Stream Input Control Room NVR Decoder EMap Security Monitoring Decoder
Brand: Bitvisus
Price: 858 USD

Quality 4K60 Gigabit Ethernet Decoding and Splicing Processor IP Stream Input Control Room NVR Decoder E-Map Security Monitoring Decoder for sale

Brand Name : Bitvisus

Model Number : BIT-Dec64-09

Certification : CE、FCC、GB

Place of Origin : Guangdong China

MOQ : 1

Price : 858

Payment Terms : T/T

Supply Ability : 1000

Delivery Time : 5-8 work days

Packaging Details : 3.7KG, 54cm*29cm*11cm

Product name : BIT-Dec64-09

Product type : 4K60 Decoding and splicing processor

Resolution : Decoding of 64xD1@30fps/16x1080p@30fps H.265/1.264

Feature : Display the video of 64-channel IPC

Function : Decoding and splicing processor

Input : 1 x Gigabit Ethernet ports

Output : 9xHDMI 1.4,1 xHDMI 1.4(Loop

Decoding performance : Decoding of 64xD1@30fps/16x1080p@30fps H.265/1.264

Output Interface : 154MHz

Warranty : 3 Years

Contact Now

Product Overview

4K60 Decoding and splicing processor

⇒Supports 9-channel HDMI outputs and 1-channel HDMI loop-through output;⇒A single device offers 9-channel HDMl outputs and allows for various splicing modes with arbitrary combinations, such as landscape orientation, portrait orientation, and quadrilateral arrangement;
⇒It features a low-power, energy - saving and environment - friendly design. Within ternal conduction cooling, no external cooling measures are required, ensuring extremely high reliability;
⇒Equipped with a high - performance SoC chip, it provides a high - performance,secure, highly integrated and easily developable embedded high - definition intelligent NVR solution;
⇒Supports decoding of64xD1@30fps H.265/1.264 or 16x1080p@30fpsH.265/H.264.;


⇒Supports Gigabit Ethernet ports;
⇒Supports Web control, which is easy to use and convenient to operate. Operations such as window roaming, window splitting and window merging can be quickly;
⇒Supports batch import and export of IPC, facilitating the rapid deployment of devices;
⇒Supports saving of pre-set plans and plan polling, enabling quick switching of IPC display schemes;
⇒Supports subtitle settings;
⇒Supports setting the background color of the output video.;
⇒Supports positioning IPC on the electronic map and echoing IPC video.


⇒Welcome to contact us to consult about the products required by your project!

Product Specifications
  Product Name BIT-Dec64-09
 Input Port 1 x Gigabit Ethernet ports
 Decoding performance 64xD1@30fps H.265/H.264 decode or 16x1080p@30fpsH.265/H.264 decode
 Output port 9xHDMI 1.4,1 xHDMI 1.4(Loop)
 Output resolution 1920x1080p60,1920x1200p60
 Maximum pixel clock frequeney of output 154MHz
 Color depth 8bit
 Control method Web
 Power supply voltage 12V
 Power consumption 26W
 Operating temperature -10~70°C/0~70°C
 Product size 483mm (Length)x162mm (Width)x 60mm (Height)
 Package size 530mm (Length)x 280mm (Width) x 95mm (Height)
 Product weigh 3KG
 Packing weight 4.6KG
 Accessories list 1 x 12V 5A power adapter, 1 x CAT5E Ethernet cable
 After-saleswarranty After-sales service 3-year warranty

Features at a Glance


Company Profile

FAQ
Why Choose Bitvisus ?
1.We have our own warehouse, which can ensure us of shipping out orders within 48 hours after payment(weekends and holidays excluded).
2. OEM/ODM offered for our customers.
3.We have various pruduct that may suit for you, such as Video Wall controller, Multiscreen Expander, Multiviewer, Embeded Projector Fusion and so on, which proves that our company has sufficient R&D experience and product quality assurrance.
Shipment & payment
1.T/T, Visa, PayPal, Western Union, L/C available.
2.DHL, UPS, EMS, FedEx, Air freight, Sea freight supported.
How to order?
1. Please send us an email or chat with us via TM, WHATS UP, SKYPE and let us know your requirements for order details.
2. We will provide a proforma invoice to you based on your order requirements.
3. Please check the PI, if everything is OK, we will deliver the goods to you as soon as possible after receiving your payment.

Product Tags:

4K60 video wall controller

Gigabit Ethernet NVR decoder

IP stream security monitoring decoder

4K60 Gigabit Ethernet Decoding and Splicing Processor IP Stream Input Control Room NVR Decoder E-Map Security Monitoring Decoder Images
